Performance Data Sheet
Omnipure Filter Company
KDF 55 Medium
metals. It controls scale, bacteria and algae.
Operating Specifications
Capacity: 1,500 Gal.
Flow Rate: 0.5 GPM
Maximum Pressure: 125 PSIG
General Installation/Operation/Maintenance Requirements
• Note flow direction of filter.
Flush new cartridge with 5 gallons of water prior to use and check for leaks.

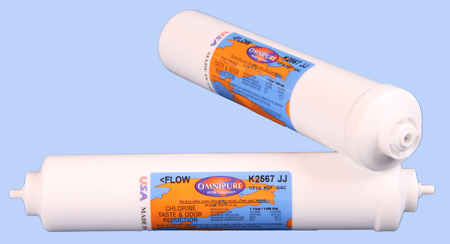

• This K2567 has 1/4 inch (6mm) quick connect fittings factory fitted, Remove the 2 plastic dust protectors (If Fitted) from each end of the filter cartridge before fitting the pipes, push scratch free tube end into the fitting until it bottoms.
Replace cartridge when rated capacity (1,500 Gal.) is reached, or when flow becomes too slow. Install in compliance with state and local laws and regulations. Before fitting to a Fridge or coffee machine please run 15 liters of water to waste though the filter to wash the carbon dust to waste.“Do not use with water that is microbiologically unsafe or of unknown quality without adequate disinfection before
Warranty Information
Omnipure Filter Company (Omnipure) warrants that the products delivered will be free from any defects in workmanship or materials. Further,
the warranty provided herein applies, only when used within the products specifications and service life, from the date of installation, beyond
which time or use Omnipure is absolved of any and all liability for any use of the product. In the event of defect or non-conformity, buyer shall
promptly notify Omnipure in writing, supplying proof of purchase dates, installation dates, and will protect and retain the products for
investigation, or Omnipure is absolved of any and all liability for any use of the product. There are no other warranties, either merchantability or
fitness, either expressed or implied.
