Alpine Pure powered 10 US Gal Per Minute UV with three 10 inch Big Grey Heavy Duty NSF Approved housings. One inch ports for a full flow of up to 60 LPM. Fully assembled with 304 New Zealand Made Stainless Steel brackets and water proof cover so this unit can be installed out in the rain. 35 Watt High Output lamp for large water flow and low energy costs. NSF Approved Granulated Activated Carbon plus 20 micron and 1 micron Polyspun Gradient Density prefilters installed as standard. This UV system is Watermarked and perfectly suited for a 1-2 bathroom home.
Pressure gauges included with the covered option.
We assemble this system as standard with a right hand side water entry, but we can assemble it with water entering from the left hand side if requested using the option below.

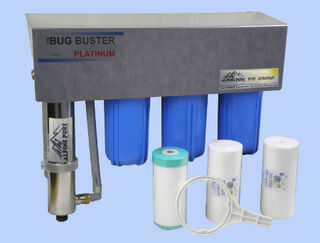

Please note that the photo currently depicts the Bug Buster Alpine Series Platinum UV system, which is identical except the Diamond's UV is 187mm shorter in length.
Pressure gauges included with the covered option.
We assemble this system as standard with a right hand side water entry, but we can assemble it with water entering from the left hand side if requested using the option below.
Please note that the photo currently depicts the Bug Buster Alpine Series Platinum UV system, which is identical except the Diamond's UV is 187mm shorter in length.
RRP:
NZ$ 1,559.00
Price:
NZ$ 1,049.00 including GST
BUG DIAMOND
| Applications | whole house (small to medium) |
| Height | 470 mm |
| Width | 600 mm |
| Depth | 220 mm |
| Max. Flow Rate (UV dose >16,000 µWs/cm2)* |
19 GPM (72 LPM) |
| Max. Flow Rate (UV dose >30,000 µWs/cm2)* |
10 GPM (38 LPM) |
| Max. Flow Rate (UV dose >40,000 µWs/cm2)* |
7.5 GPM (28 LPM) |
| Water Chamber Material | 304 Stainless Steel |
| Chamber Length | 11.22 inches / 285 mm |
| Chamber Diameter | 3.5 inches / 89 mm |
| Controller Size | 7.13 x 3.75 x 1.96 inches (181 x 95 x 50 mm) |
| Controller | AP BAL 100 |
| Lamp | AP LP 310 |
| Sleeve | QS-340 |
| Electrical | 100-240v, 50/60HZ |
| Power Consumption | 35 watts |
| Lamp Power | 35 watts High Output |
| Inlet / Outlet Plumbing Ports | 1" |
| "Power-On" Indicator Light | YES |
| Audible Lamp Failure Alarm | YES |
| Lamp Replacement Reminder | YES |
