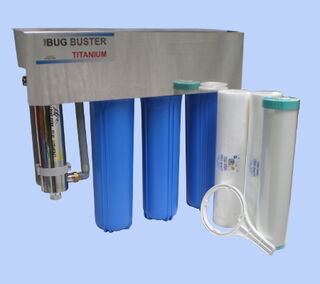

BUG TIM - The Bug Buster Alpine Series Titanium

The Bug Buster Alpine Series Titanium
Alpine Pure powered 18 US Gal Per Minute UV with Three 20 inch Big Grey Heavy Duty NSF Approved housings. One inch ports for a full flow of up to 80 LPM. Fully assembled with 304 New Zealand made Stainless Steel brackets and water proof cover so this unit can be installed out in the rain. 40 Watt High Output lamp for large water flow and low energy costs.

NSF Approved Filter cartridges, including the Granulated Activated Carbon plus the Genuine Alpine Pure Polyspun Gradient Density 20 micron and 1 micron prefilters all installed as standard.

Have you ever wondered what the boss uses in his own home? Well this is it, he just added a UV sensor so he knows at a glance the percentage of UV transmission into the water supply. It is a $350 extra and available on request.

This UV system is Watermarked and perfectly suited for a 2-4 bathroom family home. So if high peak flows with taste and odour reduction from the final carbon cartridge along with safe water is your primary objective, this is your safe choice.

Pressure gauges are included with the covered option.

We assemble this system as standard with a right hand side water entry, but we can assemble it with water entering from the left hand side if requested using the option below.
RRP Priced from:
NZ$ 2,189.00
Price Priced from:
NZ$ 1,699.00 including GST
BUG TIM
Option:
[{"code":"BUG TIM","price":1699,"qty":9999,"pid":5615347,"style":"no cover or gauges","disabled":false,"imgsrc":"/images/100287/pid1353633/bugbustertitanium-1.jpg","title":"The Bug Buster Alpine Series Titanium "},{"code":"BUG TIM COVER","price":1899,"qty":9999,"pid":5615348,"style":"with cover and gauges","disabled":false,"imgsrc":"/images/100287/pid1353633/bugbustertitanium-1.jpg","title":"The Bug Buster Alpine Series Titanium "}]
Water Flow Direction:
Purchase Qty:

Applications whole house
(medium to large)
Height 750 mm
Width 830 mm
Depth 220 mm
Max. Flow Rate
(UV dose >16,000 µWs/cm2)*
36 GPM (136 LPM)
Max. Flow Rate
(UV dose >30,000 µWs/cm2)*
18 GPM (68 LPM)
Max. Flow Rate
(UV dose >40,000 µWs/cm2)*
13.5 GPM (51 LPM)
Water Chamber Material 304 Stainless Steel
Chamber Length 18.6 inches / 472 mm
Chamber Diameter 3.5 inches / 89 mm
Controller Size 7.13 x 3.75 x 1.96 inches
(181 x 95 x 50 mm)
Controller AP BAL 100
Lamp AP LP 422
Sleeve AP QS 452
Electrical 100-240v, 50/60HZ
Power Consumption 40 watts
Lamp Power 40 watts High Output
Inlet / Outlet Plumbing Ports 1"
"Power-On" Indicator Light YES
Audible Lamp Failure Alarm YES
Lamp Replacement Reminder YES
